Pencetak skrin rata dengan penghantar
Pencetak skrin rata dengan penghantar
Pencetak skrin rata dengan penghantar
Pencetak skrin rata dengan penghantar
Pencetak skrin rata dengan penghantar
  • Pencetak skrin rata dengan penghantar
  • Pencetak skrin rata dengan penghantar
  • Pencetak skrin rata dengan penghantar
  • Pencetak skrin rata dengan penghantar
  • Pencetak skrin rata dengan penghantar

Pencetak skrin rata dengan penghantar

    Jenis bayaran: L/C,T/T
    Incoterm: FOB,CIF
    Pesanan minimum: 1 Set/Sets
    Masa penghantaran: 15 Hari

Maklumat asas

Model No.: S-81110F

Additional Info

Pembungkusan: Kes kayu

Produktiviti: 20 sets/month

Jenama: KC

Pengangkutan: Ocean

Tempat asal: Dongguan

Keupayaan bekalan: 20 sets/month

Sijil: CE Certificate

Penerangan produk

Mesin cetak skrin rata S-81110F dengan penghantar // Penggunaan dan watak

128

  • Installed in the flat screen printing machine on the basis of a 10-station conveyors, one can fixture 10 products for printing,;
  • Saving makeready times, improved work efficiency, suitable for flat small monochrome printing area less than 80mm × 110mmscreen printing;
  • The structural design using the up and down movement of the screen plate type, conducive removed and placed;
  • Horizontal cylinder design a stable, uniform squeegee pressure back to Mexico and flat, good print quality;
  • Semi-automatic operation, the operator interface can be used;
S-81110F Flat screen printing machine with conveyor //Application

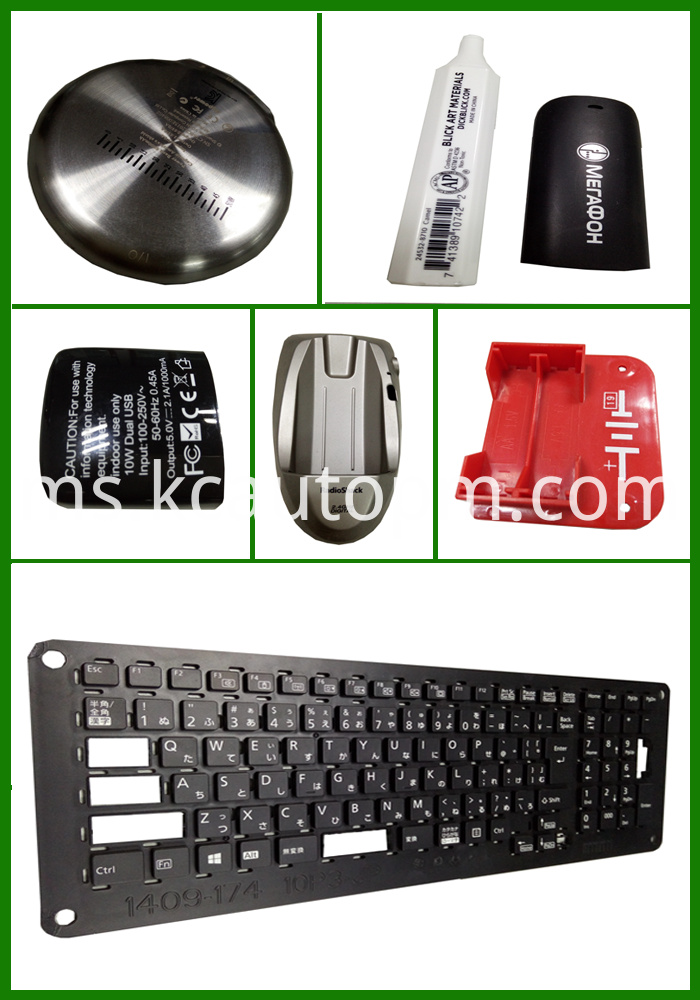

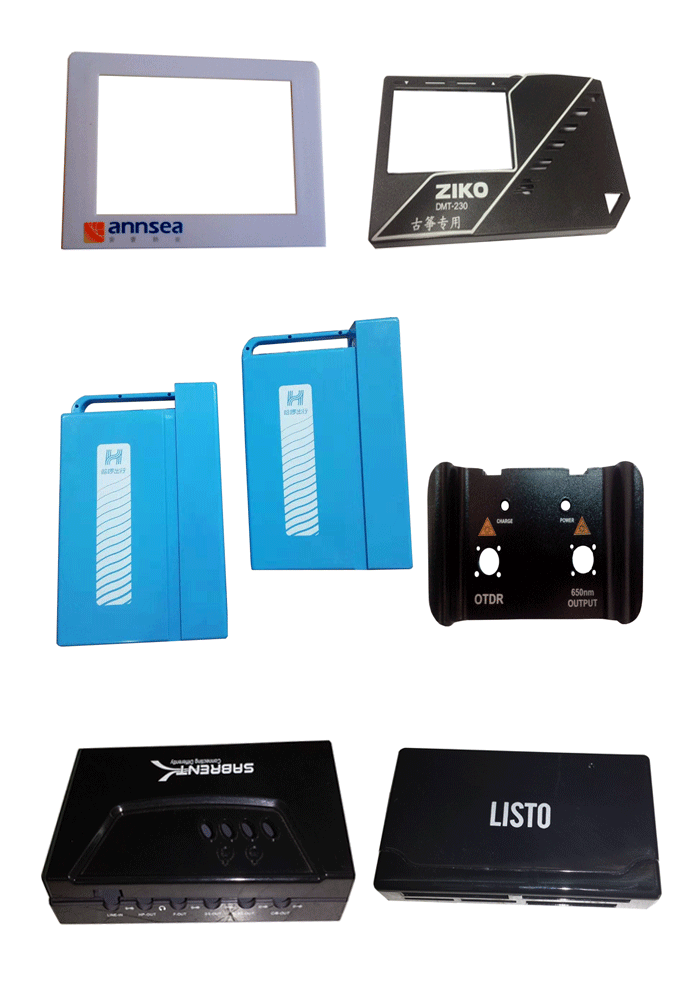

Electrons,hardwares, autos, toys, gifts, Plastics, household appliances, artware, stationery, adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork, office supplies, Kitchen utensils, Hotel supplies, Computer, Mobile, ect, industrial field.


S-81110F Flat screen printing Machine with conveyor //Parameters
  • The max printing thickness: 200 MM;
  • Air consumption: 75 Lit/Min;
  • Outline size: 1080×850×1280MM;
  • The max printing area : 80×110MM;
  • Dimension of working table: 80mm×115mm;
  • Max printing speed: 1800Pc/H;
  • Max frame dimension: 550×250mm;
  • Stroke of Squeegee: 250mm;
  • Stroke of Table cylinder: 200mm;
  • Number of working table: 10

S-81110F Flat screen printing Machine with conveyor //Advantage

  • Microcomputer monolithic program control operations, brand-name electrical and electronic components fitted.
  • Screen lift, precision and smooth running.
  • Automatically the line scraping oil back to the for mimeographed head movements function.
  • Printing stroke and speed can be flexibly adjusted.
  • Automatically balance the scraper technology.
  • Before and after the screen frame and turn the trim function.
  • Cast aluminum alloy beams, pneumatic lifting mode.
  • Foot printing function;
  • Scraper can set as stopping front or Back;
  • 10 Products installed to improve production printing speed.
