Mesin setem timbul hidraulik
Mesin setem timbul hidraulik
Mesin setem timbul hidraulik
Mesin setem timbul hidraulik
Mesin setem timbul hidraulik
  • Mesin setem timbul hidraulik
  • Mesin setem timbul hidraulik
  • Mesin setem timbul hidraulik
  • Mesin setem timbul hidraulik
  • Mesin setem timbul hidraulik

Mesin setem timbul hidraulik

    Harga seunit: USD 9633 / Set/Sets
    Jenis bayaran: L/C,T/T,Western Union
    Incoterm: FOB,CIF
    Pesanan minimum: 1 Set/Sets
    Masa penghantaran: 7 Hari

Maklumat asas

Model No.: HH-TC4050LPT

tempat asal: Pitcairn, Jepun, Kazakhstan, Kiribati, Kyrgyzstan, Latvia, Arab Saudi, Slovakia (Republik Slovak), Madagascar, Kepulauan Solomon, selatan Sudan, Helena St., Sudan, Nama Surin, Swaziland, Sweden, Republik Arab Syria, Taiwan, China, Venezuela, Kepulauan Virgin (AS), Yaman, Pertemuan semula, Persekutuan Russia, Saint Barthelemy, Sao Tome dan Principe, selatan Sudan, St. Pierre dan Miquelon, Vietnam, Jepun, Jersi, Jordan, Kenya, Guinea, Lesotho, Nepal, Kazakhstan, Republik Demokratik Rakyat Lao, Filipina, Luxembourg, Qatar, Belanda

Jenis: Jurulatih Gim Bersepadu

Sesuai untuk orang ramai: Mahir

Lokasi bilik pameran (di negara mana terdapat bilik sampel di luar negara): Kanada, United Kingdom, Itali, Algeria

Table Size: 520*800mm

Additional Info

Pembungkusan: Kes kayu

Produktiviti: 100 Sets/month

Jenama: KC

Pengangkutan: Ocean

Tempat asal: Dongguan

Keupayaan bekalan: 100 Sets/month

Sijil: CE

Port: Shenzhen,Guangzhou,Hongkong

Penerangan produk

Mesin setem timbul hidraulik // Penggunaan dan watak

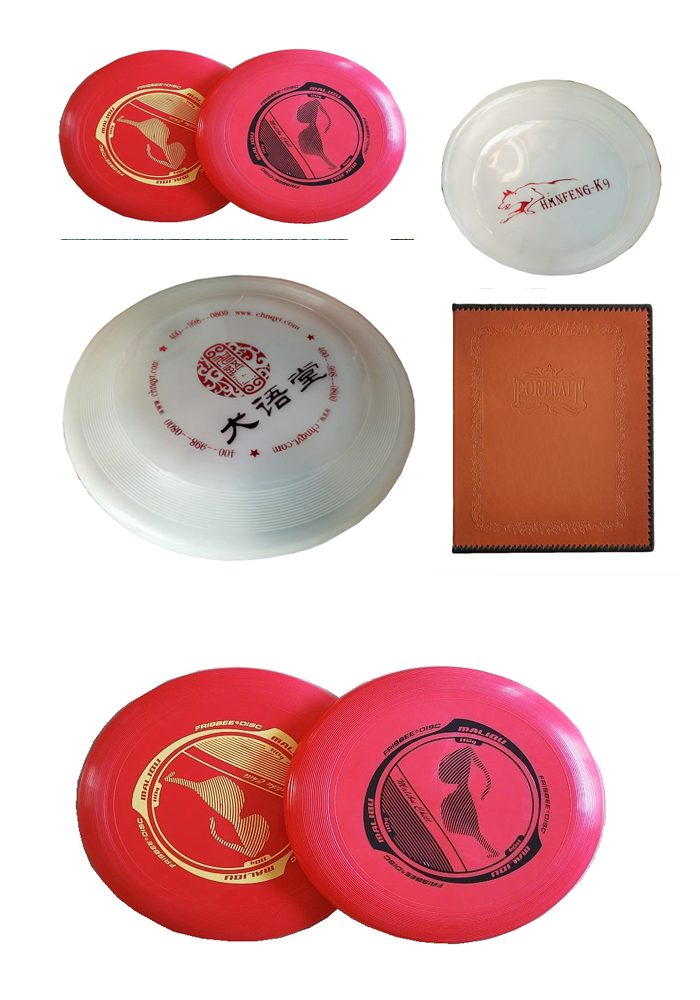

Sampel

004

Data

  • Gilding - paper, leather, wood, plastic,
  • Baked - wood products, baked painting, gift box packaging;
  • Embossing - paper, leather, cloth.
  • Flat-object stamping machine with large-pressure, Suitable for stamping on invitation letter, card. Leather, wooden gift, Paper package, Plastics film, Electron products;
  • Manual. Automatic feed foil, automatic temperature controlling ensures stamping quality.
  • Because of large pressure, It is suitable for gilding and baking Impression on leather, paper, wooden materials.
  • Hydraulic drive, pressure more large.

Application fields

  • Paper Gilding, Leather Impression, Wood ware Baking
  • Paper Concave-convex embossing, Cloth hot stamping,
  • Plastics Bronzing
  • Mobile screen, Household appliances Panel , Thick paper card, PVC board Etc. large dimension Flat substrate stamping and Bronzing.
  • Woodiness objects baking-burns and Impress;
  • Leather bronzing and Molding;
  • Paper products concavo indentation.
  • Graduated disc of clock bronzing.
  • Die-cutting

Hydraulic embossing stamping Machine //Parameter

HH-TC4050LPT

  • 1. Hot plate area:400 ×500 mm
  • 2. Working table area:520 ×800mm
  • 3. Max printing pressure:20,000 Kg
  • 4. Up and down distance:100mm
  • 5. Heat wattage: 6×500W
  • 6. Foil in feed: Motor Drive
  • 7. Temperature adjustment:0-300oC .


HH-TC4060LPT

  • 1. Hot plate area:400 × 600 mm
  • 2. Working table area:520 ×800mm
  • 3. Max printing pressure:20,000 Kg
  • 4. Up and down distance:100mm
  • 5. Heat wattage: 6×500W
  • 6. Foil in feed: Motor Drive
  • 7. Temperature adjustment:0-300oC


Works supply :110V-220V Power supply ; 46# Hydraulic oil

Package list  Size: 1.16*1.2*1.9 m, 0.75*0.55*0.83 m

Gross weight: 780 kg; 85 kg;

CBM: 2.6448, 0.342375

H.S.Code: 8443198000

Certificate: CE

Hydraulic embossing stamping machine //Advantage

  • Bench made ofhigh strength cast steel forging, has a very high flatness and stability;
  • Thread rising institutions to adjust the table lift to facilitate the opening and closing of space according to the height adjustment of the product tipping machine;
  • Relay control program is running, easy operation, easy maintenance;
  • Pairs of buttons control the stamping head up and down, security is greatly enhanced;
  • Hydraulic drive instead of the pneumatic drive, stamping pressure significantly improve the stability is greatly enhanced;
  • Heating pipe heating, rapid heating, replacement is simple and convenient;
  • Heating plate can be removed to facilitate installation and replacement gilt template;
  • Ironing board and table parallelism can be adjusted to facilitate the flexible adjustment depending on the size of the different regions of the pressure;
  • Automatic temperature control system can be set depending on the product temperature, automatic temperature control; temperature control accuracy of about 5 degrees;
  • Hot foil stamping degree of time and rolls of time can be set freely according to different technical requirements;
  • Foil paper automatic document feeder, conveyor length can be set according to the size of the stamping area of freedom.A17


Kategori produk : Mesin Hot Stamping Kerajang > Mesin hidraulik Hot Stamping
